Simplicity of interface and connection.

All three versions of WallBox are equipped with WiFi and Lan connection.

RFID cards supplied

Our Stations can be managed remotely via the app or simply by using the supplied RFID card.

Color LCD display

Celektron’s wallboxes are equipped with a color display with LCD screen, with an intuitive and user friendly interface.

Power regulation

With the kW output regulation you can modulate the power request to avoid the disconnection of the meter during recharges.

WALLBOX. WELCOME GREEN.

NEW CELEKTRON CHARGING STATIONS
The intuitive Celektron charging stations with advanced measurement, communication and control functions of the CK series for electric vehicles. Full compatibility with all European cars, Standard IEC 62196-2. Available in standard version and in version with STAND Basic and Plus

7kW11kW22kW
1P-2203P-3803P-380
32A16A32A
WallBox Line-up

ADVANTAGES OF CELEKTRON WALLBOX .

Type 2 socket (European) with cable length of 5 meters supplied.

RFID CARD
with contactless reader placed under the main display.

THREE VERSIONS
7Kw | 11Kw | 22Kw
5 YEARS WARRANTY

WALLBOX CHARGING STATIONS

ARE AVAILABLE READY FOR DELIVERY!

TECHNICAL FEATURES

TECHNICAL FEATURES

Single-phase and three-phase products


ModelCK7-132CK11-316CK22-332
Maximum rated power7KW (@230V, 1-phase)11KW (@400V, 3-phase)22KW (@400V, 3-phase)
Maximum rated current32A16A32A
Recommended RCCBType B, 40A, 3-PolesType B, 25A, 5-PolesType B, 40A, 5-Poles
Recommended input cable size3x6mm2, copper5x4mm2, copper5x6mm2, copper

Electrical parameters


Input voltage1-phase AC, 230V ± 10% – 3-phase AC, 400V ± 10%
Nominal frequency50/60Hz
Line switchDedicated circuit
Circuit input terminalL1/N/GC – L1/L2/L3/N/GC

Functional description


Charging methodMode 3
Charging controlLocal: “Plug and charge” or “authorization by swipe card”; Remote: control via smartphone APP (separate operators).

Display		4.3 inch LCD screen (display charging current, voltage, energy, charging time, status and fault information, etc.)
light indicatorsindicator LED lights (indicate power, connection, charging and faults)
Communication interfaceEthernet (RJ45 interface), WiFi (2.4GHz), RS485 (Internal debug interface)
Communication protocolOCPP 1.6j
Safety protectionEmergency stop button, fluctuation protection, overheat protection, over / under voltage protection, over current protection, ground protection

Mechanical parameters


FasteningOn the wall or on a stand support
Charging connectorIEC 62196-2, Type 2
Charging cable length5m (standard configuration)
Dimensions (H x D x L)410mm × 260mm × 140mm
WeightCK1: ≤ 10kg CK3:≤ 12kg
Color and materialsFront panel: Black, Tempered glass
Frame: cream white color, Metal plate
Insulation classificationIP54, Waterproof

Environmental conditions


Altitude≤ 2000m
Storage temperature-40 ~ 75°C
Operating temperature-30 ~ 55°C
Relative humidity≤ 95% RH, No condensation
Vibrations‹0.5G, no sudden vibration and impact
Place of installationIndoor or outdoor, good ventilation, no flammable and explosive gas

USER MANUAL

TOTAL CONTROL.

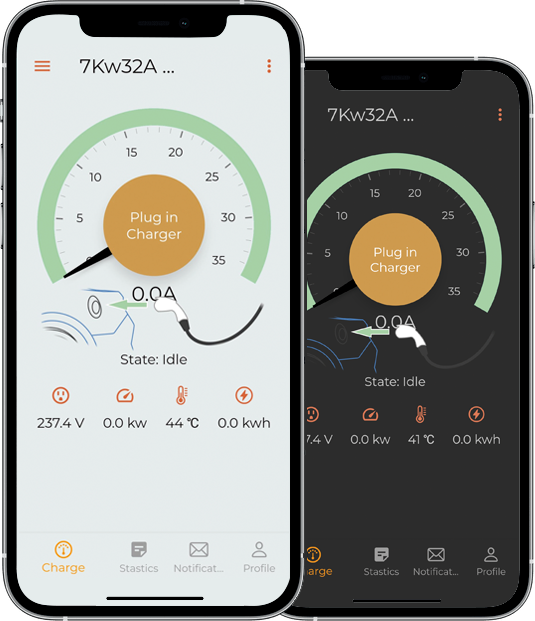

Thanks to the dedicated APP, you have total control of the Wallbox station.

Output kW adjustment to avoid disconnection of the domestic meter due to power overruns.
Monitoring and recording of charging cycles.
Real-time activity tracking.
Charging times programming.

Our app is available for Android and iOS

WIDE DISPLAY.
Celektron’s wallbox charging stations have an intuitive and user friendly interface thanks to the large color LCD display, integrated into the scratch-resistant tempered glass front panel.

You will be able to monitor the operating status of the station in real time.

EASE OF USE
Thanks to the supplied 5mt cable. WallBox guarantees maximum compatibility and efficiency in daily use.
In addition, all stations are supplied with and without cable, depending on the customer’s choice.
Installable in the environment: Indoor / Outdoor with Standard IP 54 – Waterproof, OCPP 1.6J Communication Protocol and control of the stations on a web platform that can be customized for the customer.

SPEED AND SECURITY.
WallBox Celektron is supplied with an RFID Card which, thanks to the integrated reader, allows the activation and total management of the device.

Total freedom of Recharge: with RFID cards, via app or directly by connecting the cable (plug & charge)
Furthermore, thanks to the LAN and WiFi connectivity available for all three versions of WallBox, you will always be guaranteed maximum connection compatibility.

MODULAR POWER
The power output modulator can be ordered separately and manages and maximizes the current available to the electrical system according to use, instant by instant, in order to always have the maximum efficiency of the domestic system.

TOTAL ELECTRONIC PROTECTION FOR:
Over-voltage / Under-voltage
Short circuit
Operating temperature control Battery pack protection (from overload) Correct “grounding” check

Celektron-Wallbox

Celektron-Wallbox Premium Stand

Celektron-Wallbox Basic Stand
